This Highest RC servo requires that you use a m3x10mm screw to attach the servo horn to the output shaft. If you choose to use another screw, be sure to use a 10mm length screw. Use of a shorter screw can cause failure and will void your warranty.

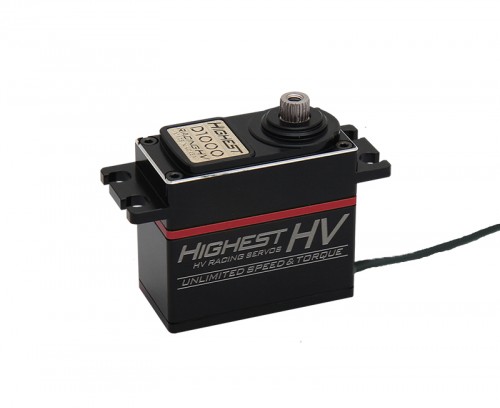

Specifications: - D1000
- Full Aluminum Case(upper,short middle,middle,bottom)
- Full Metal Gear
- Operating Voltage : 6.0 ~ 7.4V
- Operating Temperature Range : -10 to +60 Degree C
- Operating Speed :
- (6.0V) : 0.11sec
- (7.4V) : 0.08sec
Stall Torque :
- (6.0V) : 24.4kg-cm / 339.2 oz-in
- (7.4V) : 29.6kg-cm / 411.4 oz-in
Dynamic Torque :
- (6.0V) : 13.8kg-cm / 181.8 oz-in
- (7.4V) : 16.2kg-cm / 225.2 oz-in
Motor Type : Ultra efficient coreless motor
- Size : 39.5*20.0*38.7 mm
- Weight : 75.2 g
